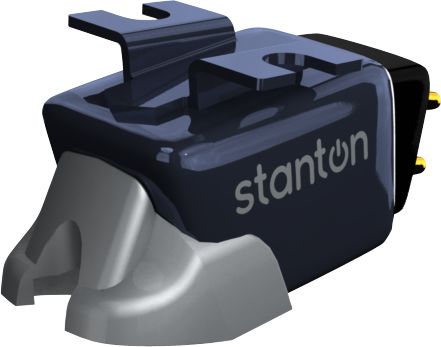

Stanton 505.V3
The new 505.V3 is the best budget-priced scratching cartridge available today. The super sturdy stylus has been coupled with the most pumped-up output for the deepest bottom and in-your-face sound. Affordable cartridge ideal for scratching. 2-coil spherical design with high output and bass response. New industrial design
Perfect for:
Hip-hop / Scratch DJs
Consumers
Record shops
Beginner DJs
| Description | Measurement |
| Frequency Response | 20 to 17 kHz |
| Output @ 1kHz: | 6.0mV |
| Channel Separation @ 1 kHz: | 27dB |
| Channel Balance @ 1 kHz: | within 2 dB |
| Tracking Force: | 2 to 5 grams |
| Stylus Tip: | Spherical .7 mil Super High Polish |
| DC Resistance: | 535 ohms. |
| Inductance: | 400 mH |
| Cartridge Weight: | 5.5 grams |
| Tracking Ability: | 80µ @ 3 grams |
| Recommended Load: | 47k ohms and 275 pF |
| Replacement Stylus: | N 505 |
